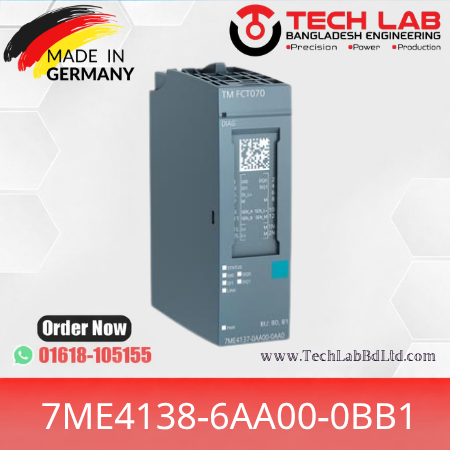

SIEMENS SIMATIC SITRANS FCT070 Coriolis flow transmitter Bangladesh. Mlfb-7ME4138-6AA00-0BB1 price

The Siemens 7ME4138-6AA00-0BB1 is the SITRANS FCT070, a Coriolis flow transmitter implemented as a technology module for SIMATIC ET 200SP. It is designed to connect compatible SITRANS Coriolis flow sensors using the Digital Sensor Link and provide flow measurement data within a SIMATIC automation environment. The module supports operation with SIMATIC PCS 7 and TIA Portal using appropriate faceplates. Siemens documentation identifies a 24 V DC supply, ET 200SP integration and support for SITRANS FCS400, FCS300, FC MASS2100 with DSL and FC300 with DSL sensor systems. The module provides diagnostic functions and dedicated status indication. Its dimensions are 20 × 73 × 58 mm with an approximate weight of 32 g and IP20 protection.

2. Technical Specification

Specification	Details
Manufacturer	Siemens
Product Code	7ME4138-6AA00-0BB1
Product Family	TM SITRANS FCT070
Product Type	Coriolis flow transmitter technology module
Platform	SIMATIC ET 200SP
Supply Voltage	24 V DC; 19.2–28.8 V
Sensor Connection	Digital Sensor Link
Inputs	83-byte assigned input address area
Outputs	7-byte assigned output address area
Base Unit	BU20 type B0/B1; current documentation identifies BU20 type B1
Protection Rating	IP20
Dimensions	20 × 73 × 58 mm
Weight	Approx. 32 g
Isolation Test	500 V AC / 707 V DC
Maximum FC DSL Cable	Up to 150 m in documented configuration

3. Key Features

• SITRANS FCT070 Coriolis flow transmitter technology module.
• Designed for SIMATIC ET 200SP.
• Digital Sensor Link connection to compatible flow sensors.
• Real-time processing of process and status data.
• Compatible with PCS 7 and TIA Portal faceplates.
• Diagnostic alarms and diagnostic indications.
• Green PWR and module/sensor status LEDs.
• IP20 protection.
• Compact 20 mm module width.
• Supports compatible SITRANS FC flowmeter families.

4. Typical Application

• Coriolis flow measurement.
• Process flow monitoring.
• Industrial liquid and gas flow applications using compatible SITRANS sensors.
• SIMATIC ET 200SP process instrumentation.
• PCS 7 and TIA Portal-based process-control systems.

5. Product Highlights

The FCT070 provides a dedicated interface between compatible SITRANS Coriolis sensors and SIMATIC ET 200SP automation systems. Its technology-module architecture enables process and status data to be integrated into the automation environment, while diagnostic functions and dedicated status indicators support system monitoring.

6. Important Ordering & Installation Information

The exact order number is 7ME4138-6AA00-0BB1. The module requires a compatible ET 200SP Base Unit; Siemens documentation identifies BU20 type B0/B1 configurations and current documentation identifies BU20 type B1. Compatible sensor selection must be checked against the supported SITRANS flowmeter and DSL interface requirements. TIA Portal, STEP 7 and PCS 7 version requirements should be checked against the applicable module documentation. Siemens Industry Support+1

Always follow the manufacturer's official installation, wiring, commissioning and safety instructions.

7. Why Choose Siemens 7ME4138-6AA00-0BB1 SITRANS FCT070 Flow Transmitter?

The SITRANS FCT070 is suitable where Coriolis flow measurement must be integrated into a SIMATIC ET 200SP automation architecture. Its Digital Sensor Link connectivity, process-data handling, diagnostics and PCS 7/TIA Portal integration make it appropriate for industrial process instrumentation using compatible SITRANS flow sensors. Siemens Industry Mall+1

8. Product Summary

The Siemens 7ME4138-6AA00-0BB1 SITRANS FCT070 is a Coriolis flow transmitter technology module for SIMATIC ET 200SP. It connects compatible SITRANS flow sensors through Digital Sensor Link and integrates process and status information into Siemens automation environments. The module operates from 24 V DC, uses an ET 200SP Base Unit and provides diagnostic functions with dedicated status indication. It is compatible with specified SITRANS flowmeter families including FCS400, FCS300, FC MASS2100 with DSL and FC300 with DSL. Its 20 × 73 × 58 mm dimensions make it suitable for compact control-panel installations.

Product Code: 7ME4138-6AA00-0BB1
Manufacturer: Siemens
Product Family: TM SITRANS FCT070
Product Type: Coriolis flow transmitter technology module
